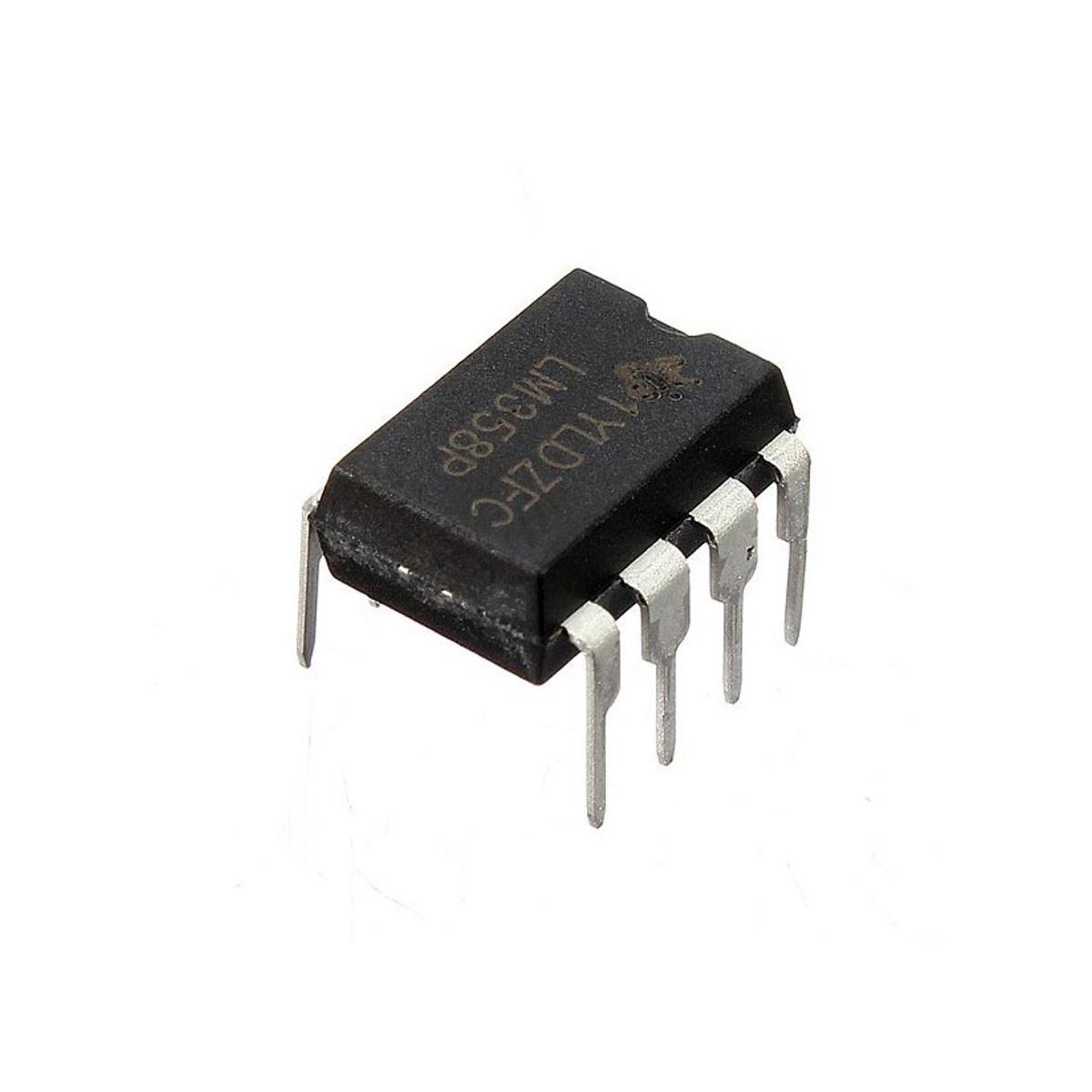

LM358N Low Power Dual Op-Amp IC DIP-8

These devices consist of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage

Technical Specification

• Integrated with two Op-Amps in a single package
• Wide power supply Range
  • Singe supply – 3V to 32V
  • Dual supply – ±1.5V to ±16V
• Low Supply current – 700uA
• Single supply for two op-amps enables reliable operation
• Short circuit protected outputs
• Operating ambient temperature – 0˚C to 70˚C
• Soldering pin temperature – 260 ˚C

Packing List

1 x LM358P Dual Operational Amplifier OP Amp DIP-8
